NOTE： Design files (3D printing files, bill of materials, assembly tutorial, circuit diagram, flight control firmware, flight control setting parameters, debugging tutorial) = 250 US dollar

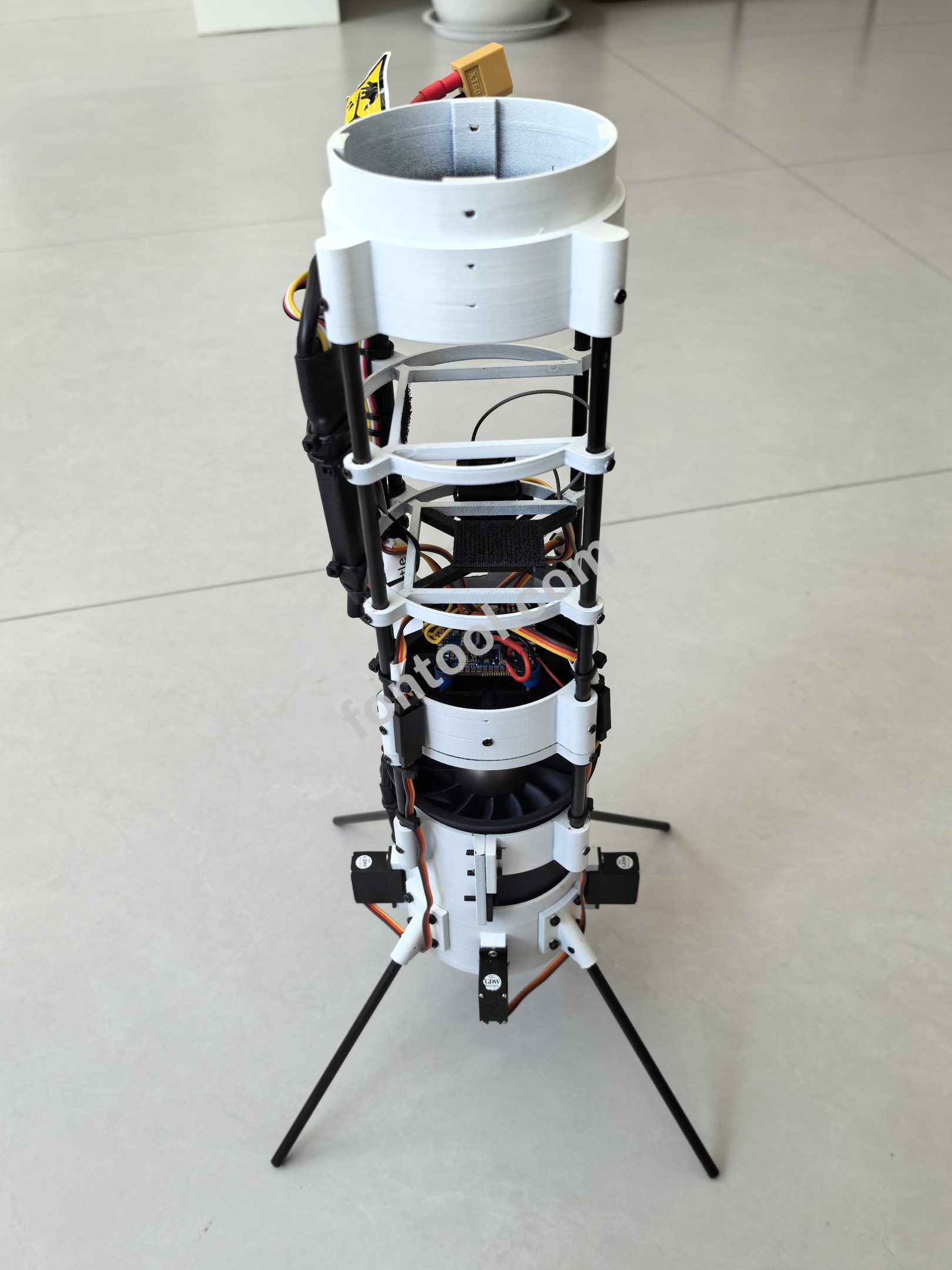

FMS70 Ducted Power Single-Axis UAV Prototype
70 Electric Ducted Power Electric Rocket Model Prototype

Rocket diameter: 75mm, height: 400mm, takeoff weight: 900g, maximum ducted thrust: 1.8kg (thrust decreases with battery charge).
Powertrain: FMS70mm 12-blade internal ducted rotor*1;
ESC: 80A6S brushless ESC;
Battery: 6S 1550mAh*1;
Servos: GDW DS041MG 5KG torque metal gear high-voltage digital servos*4;
Flight control: F4 V3S Plus*1;
Flight control firmware: INAV 7.0;
Casing: PETG-CF 3D printed and painted;
Flight endurance: Maximum hovering time: 3 minutes. To protect the battery, it is recommended to land within 2 minutes and 30 seconds.
